Red Hat build of Kueue Operator Setup

This lab guides you through the installation and basic configuration of the Red Hat build of Kueue, a Kubernetes-native job queueing system. Kueue is essential for advanced GPU quota management, enabling fair resource sharing and workload prioritization, including preemption, within your OpenShift cluster.

1. Prerequisites

  1. OpenShift AI Operator: Ensure the OpenShift AI Operator is installed on your cluster.

  2. GPU Worker Node: You need at least one worker node with an NVIDIA A10G GPU. On AWS, a g5.2xlarge instance is suitable.

  3. GPU Node Taint: The GPU node must be tainted to ensure only GPU-tolerant workloads are scheduled on it.

This taint was applied during the bootstrap process in the previous lab. If you need to reapply it, use the following command, replacing <your-gpu-node-name> with the actual name of your GPU node:

oc adm taint nodes <your-gpu-node-name> nvidia.com/gpu=Exists:NoSchedule --overwrite

2. Install Red Hat build of Kueue Operator

This section details the steps to install the Red Hat build of Kueue Operator.

Applying YAML Snippets

The following snippets use cat <<EOF | oc apply -f - to apply the YAML content directly from your terminal. This avoids creating temporary files. Simply copy the entire block, including cat <<EOF | oc apply -f - and the final EOF, and paste it into your terminal.

  1. Create the openshift-kueue-operator namespace with cluster monitoring enabled.

    cat <<EOF | oc apply -f -
apiVersion: v1
kind: Namespace
metadata:
  name: openshift-kueue-operator
  annotations:
    openshift.io/description: "openshift-kueue-operator"
    openshift.io/display-name: "openshift-kueue-operator"
    openshift.io/requester: ""
  labels:
    openshift.io/cluster-monitoring: "true"
spec:
  finalizers:
    - kubernetes
EOF

  2. Create the Subscription for the Kueue operator in the newly created namespace.

    cat <<EOF | oc apply -f -
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
  labels:
    operators.coreos.com/kueue-operator.openshift-kueue-operator: ""
  name: kueue-operator
  namespace: openshift-kueue-operator
spec:
  channel: stable-v1.0
  installPlanApproval: Automatic
  name: kueue-operator
  source: redhat-operators
  sourceNamespace: openshift-marketplace
  startingCSV: kueue-operator.v1.0.1
EOF

  3. Create the OperatorGroup to install the Kueue operator from redhat-operators.

    cat <<EOF | oc apply -f -
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
  annotations:
    olm.providedAPIs: Kueue.v1.kueue.openshift.io
  name: openshift-kueue-operator
  namespace: openshift-kueue-operator
spec:
  upgradeStrategy: Default
status:
  namespaces:
  - ""
EOF

  4. Wait for the Kueue operator pod to be fully deployed and running.

    oc get pods -n openshift-kueue-operator -w

    You should see output similar to this, indicating the controller pod is Running:

    NAME                                   READY   STATUS    RESTARTS   AGE
kueue-controller-xxxxxx-yyyyy            1/1     Running   0          2m

  5. Create the global Kueue custom resource (CR) named cluster. This configures Kueue’s overall behavior, including enabling preemption with a Classical policy.

    cat <<EOF | oc apply -f -
apiVersion: kueue.openshift.io/v1
kind: Kueue
metadata:
  labels:
    app.kubernetes.io/name: kueue-operator
    app.kubernetes.io/managed-by: kustomize
  name: cluster
  namespace: openshift-kueue-operator
spec:
  managementState: Managed
  config:
    integrations:
      frameworks:
      - BatchJob
      - MPIJob
      - RayJob
      - RayCluster
      - JobSet
      - Pod
      - PaddleJob
      - PyTorchJob
      - TFJob
      - XGBoostJob
      - Deployment
      - AppWrapper
    preemption:
      preemptionPolicy: Classical
EOF

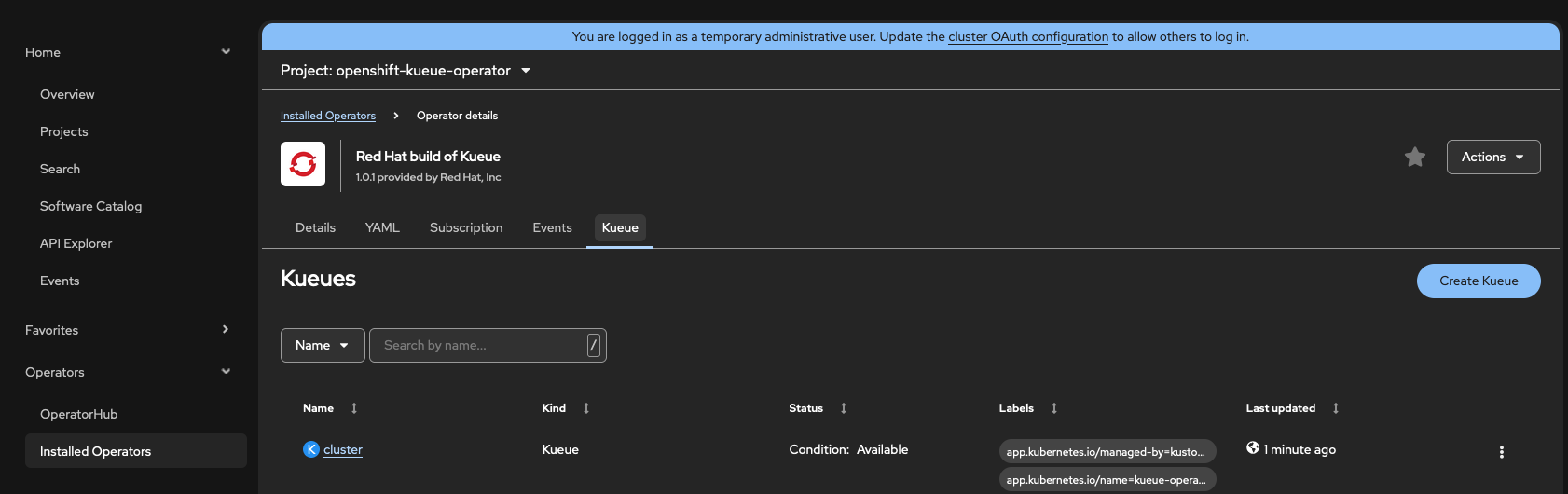

After these steps, the Red Hat build of Kueue is installed and running in your cluster. You can verify its status in the OpenShift Web Console by navigating to Operators → Installed Operators → Red Hat build of Kueue → Kueue → Cluster.

RHBoKCluster

3. Install Kueue Vizualization

The Operator does not have a Dashboard yet

Some might experience Websocket issues

First apply the following configuration:

cat <<EOF | oc apply -f -
kind: Project
apiVersion: project.openshift.io/v1
metadata:
  name: kueue-system
spec:
  finalizers:
    - kubernetes
status:
  phase: Active
---
# Source: kueue/templates/kueueviz/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: 'kueue-kueueviz-backend-read-access'
  namespace: 'kueue-system'
rules:
  - apiGroups: ["kueue.x-k8s.io"]
    resources: ["workloads", "clusterqueues", "localqueues", "resourceflavors"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["pods", "events", "nodes"]
    verbs: ["get", "list", "watch"]
  - apiGroups: ["kueue.x-k8s.io"]
    resources: ["workloadpriorityclass"]
    verbs: ["get", "list", "watch"]
---
# Source: kueue/templates/kueueviz/cluster-role-binding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: 'kueue-kueueviz-backend-read-access-binding'
  namespace: 'kueue-system'
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: 'kueue-kueueviz-backend-read-access'
subjects:
  - kind: ServiceAccount
    name: default
    namespace: 'kueue-system'
---
# Source: kueue/templates/kueueviz/backend-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: 'kueue-kueueviz-backend'
  namespace: 'kueue-system'
spec:
  type: ClusterIP
  ports:
    - port: 8080
      targetPort: 8080
  selector:
    app: kueueviz-backend
---
# Source: kueue/templates/kueueviz/frontend-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: 'kueue-kueueviz-frontend'
  namespace: 'kueue-system'
spec:
  type: ClusterIP
  ports:
    - port: 8080
      targetPort: 8080
  selector:
    app: kueueviz-frontend
---
# Source: kueue/templates/kueueviz/backend-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: 'kueue-kueueviz-backend'
  namespace: 'kueue-system'
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kueueviz-backend
  template:
    metadata:
      labels:
        app: kueueviz-backend
    spec:
      containers:
        - name: backend
          image: 'registry.k8s.io/kueue/kueueviz-backend:v0.13.4'
          imagePullPolicy: 'IfNotPresent'
          ports:
            - containerPort: 8080
          resources:
            limits:
              cpu: 500m
              memory: 512Mi
            requests:
              cpu: 500m
              memory: 512Mi
---
# Source: kueue/templates/kueueviz/frontend-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: 'kueue-kueueviz-frontend'
  namespace: 'kueue-system'
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kueueviz-frontend
  template:
    metadata:
      labels:
        app: kueueviz-frontend
    spec:
      containers:
        - name: frontend
          image: 'registry.k8s.io/kueue/kueueviz-frontend:v0.13.4'
          imagePullPolicy: 'IfNotPresent'
          ports:
            - containerPort: 8080
          env:
            - name: REACT_APP_WEBSOCKET_URL
              value: 'wss://backend.kueueviz.local'
          resources:
            limits:
              cpu: 500m
              memory: 512Mi
            requests:
              cpu: 500m
              memory: 512Mi
EOF

Wait for the pods on the kueue-system namespace to be in Running state. You can check the status with:

oc get pods -n kueue-system -w

You should see output similar to this, indicating the pods are Running:

NAME                                      READY   STATUS    RESTARTS   AGE
kueue-kueueviz-backend-xxxxxx-yyyyy       1/1     Running   0          2m
kueue-kueueviz-frontend-xxxxxx-zzzzz      1/1     Running   0          2m

In case you are having issues with the scheduling of the pods, you can try to increase the number of workers in your cluster. (via MachineSets → Instance type m6a.4xlarge → Edit Machine Count → 2 in the OpenShift Web Console).

Then, you can access the Kueue Vizualization UI by port-forwarding the backend and frontend services to your local machine. Run the following commands in your terminal:

oc -n kueue-system port-forward svc/kueue-kueueviz-backend 8080:8080 &
oc -n kueue-system set env deployment kueue-kueueviz-frontend REACT_APP_WEBSOCKET_URL=ws://localhost:8080
oc -n kueue-system port-forward svc/kueue-kueueviz-frontend 3000:8080

Open http://localhost:3000/ in the browser.
