Working with Pipelines

In this module we will be working with pipelines. We will be creating a pipeline that will train a model and then deploy it to a serving runtime.

Develop a KFP pipeline to retrain a model

In the parasol-insurance repository, there is a python notebook that re-trains a model: 04-03-model-retraining.ipynb. We will be using this notebook to create a pipeline that will retrain the model.

In RHOAI, open the standard-workbench.
Create a new notebook and name it model-retraining-pipeline.
Start the notebook with a cell to import the packages neccesary to work with kfp pipelines sdk:
Solution
import kfp.compiler from kfp import dsl

Add a cell to define the kubeflow endpoint, and the image that will be used to create containers that will execute each task:

Solution

KUBEFLOW_ENDPOINT = 'https://ds-pipeline-dspa.parasol-insurance.svc.cluster.local:8443'
PYTHON_IMAGE = 'image-registry.openshift-image-registry.svc:5000/openshift/python:latest'

Add a cell to define the task that will download the dataset (see the retrieve_dataset function defined at 04-03-model-retraining.ipynb)

Solution

@dsl.component(
    base_image=PYTHON_IMAGE,
    packages_to_install=["requests", "zipp"],
)
def download_data(dataset_type: str,
                  datasets: dsl.Output[dsl.Dataset]):
    import requests
    import zipfile

    URL = f"https://rhods-public.s3.amazonaws.com/sample-data/accident-data/accident-{dataset_type}.zip"

    print("Downloading file...")
    response = requests.get(URL, stream=True)
    block_size = 1024
    with open(f'./accident-{dataset_type}.zip', 'wb') as f:
        for data in response.iter_content(block_size):
            f.write(data)

    print("Unzipping file...")
    with zipfile.ZipFile(f'./accident-{dataset_type}.zip', 'r') as zip_ref:
        zip_ref.extractall(path=datasets.path)
    print("Done!")

Notice the output dataset parameter (datasets: dsl.Output[dsl.Dataset]), and how we use the path of such dataset to unzip the contents of the downloaded dataset.

Create a cell to define the pipeline, and use the previously defined task.

Solution

@kfp.dsl.pipeline(
    name="Accident Detection",
)
def accident_detection_pipeline(model_obc: str = "accident-detection"):
    download_data(dataset_type="sample")

Create a cell to connect to the KUBEFLOW_ENDPOINT, and create your pipeline run:

Solution

print(f"Connecting to kfp: {KUBEFLOW_ENDPOINT}")
import os

bearer_token = "sha256~P0wEh46fxWa4uzPKR-b3fhcnsyXvCju4GovRd2YNNKM"

sa_ca_cert = "/run/secrets/kubernetes.io/serviceaccount/service-ca.crt"
if os.path.isfile(sa_ca_cert) and "svc" in KUBEFLOW_ENDPOINT:
    ssl_ca_cert = sa_ca_cert
else:
    ssl_ca_cert = None

client = kfp.Client(
    host=KUBEFLOW_ENDPOINT,
    existing_token=bearer_token,
    ssl_ca_cert=ssl_ca_cert,
)
result = client.create_run_from_pipeline_func(
    accident_detection_pipeline, arguments={}, experiment_name="accident-detection")

Provide your own token, you can find the token in the OpenShift Web Console by clicking on your username in the top right corner and selecting Copy Login Command.

Save and run your notebook.

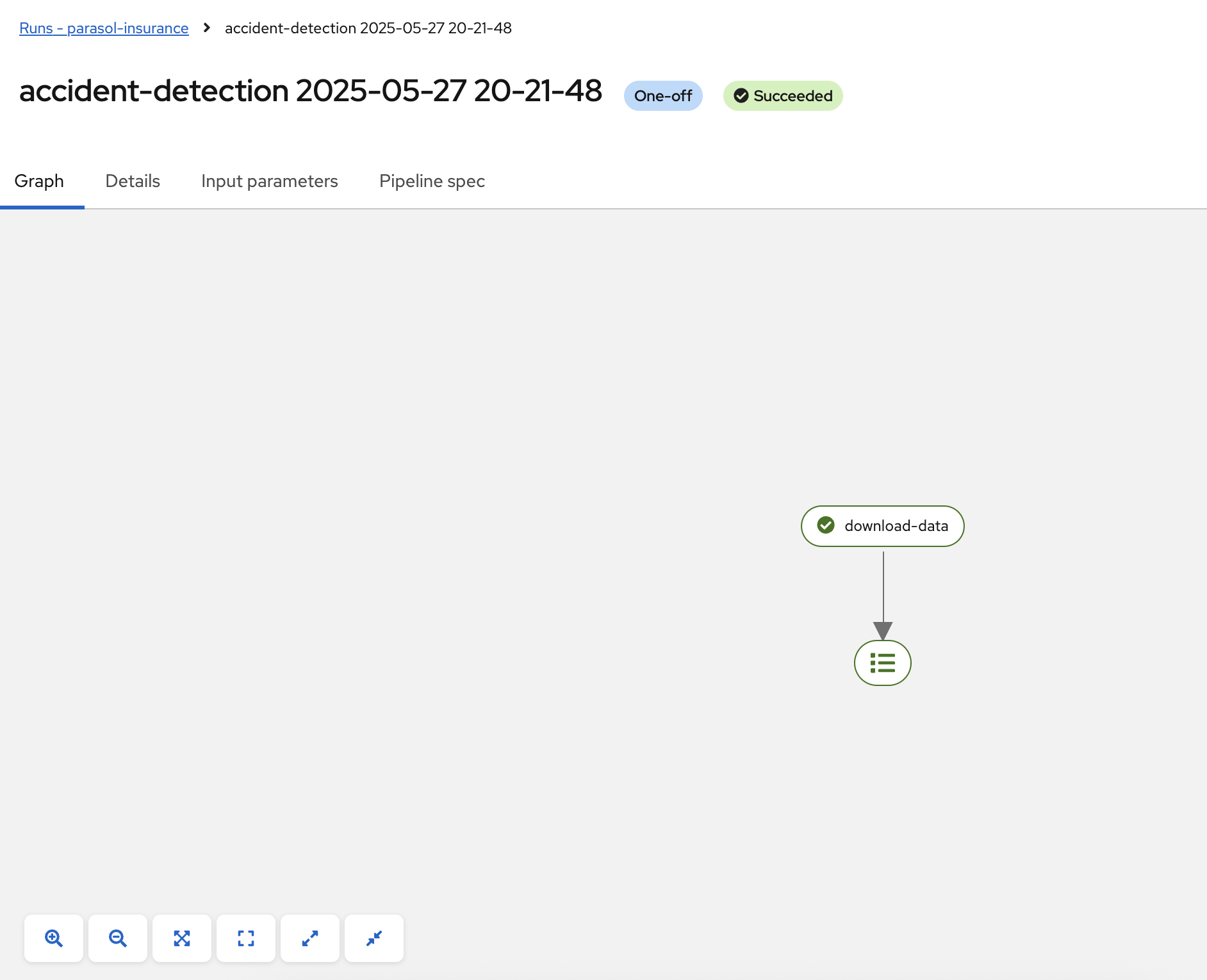

Validate that the pipeline is running, using the RHOAI dashboard, navigate to the pipeline runs of the parasol-insurance data science project: You should find a run with a name starting with accident-detection

Create a cell to train the model, organize this cell to appear before the cell that defines the pipeline (@kfp.dsl.pipeline). The contents of this cell were crafted after from a combination of functions from 04-03-model-retraining.ipynb; we recommend you to compare this cell with the original notebook contents:

Solution

@dsl.component(
    base_image=PYTHON_IMAGE,
    packages_to_install=["ultralytics", "opencv-contrib-python-headless"],
)
def train_model(datasets: dsl.Input[dsl.Dataset],
                model_onnx: dsl.Output[dsl.Model]):
    import os
    import shutil
    import datetime
    from ultralytics import YOLO

    print("setting the symlink for the datasets")
    os.symlink(datasets.path, "/opt/app-root/src/datasets")

    # Load model
    print("using a base model to start the training")
    model = YOLO('yolov8m.pt')  # load a pretrained model (recommended for training)
    print("training the model")
    model.train(data=f'{datasets.path}/accident-sample/data.yaml',
                          epochs=1, imgsz=640, batch=2)

    print("saving the file as onnx")

    # create runs/detect/train/weights/best.onnx
    YOLO("/opt/app-root/src/runs/detect/train/weights/best.pt").export(format="onnx")

    # save runs/detect/train/weights/best.onnx as {model_onnx.path}/accident-detection_{timestamp}.onnx
    timestamp = datetime.datetime.now().strftime("%Y%m%d%H%M")
    os.makedirs(model_onnx.path, exist_ok=True)
    shutil.copy('/opt/app-root/src/runs/detect/train/weights/best.onnx',
                f'{model_onnx.path}/accident-detection_{timestamp}.onnx')

Notice here the use of the shutil package to copy from the default output directory from the YOLO package to the output path of our model_onnx output parameter.

Add the train_model task to the pipeline:

Solution

@kfp.dsl.pipeline(
    name="Accident Detection",
)
def accident_detection_pipeline(model_obc: str = "accident-detection"):
    download_data_task = download_data(dataset_type="sample")
    train_model(datasets=download_data_task.output)

Notice how we use the output of the download_data task as the input of the train_model task.

Save and run your notebook.

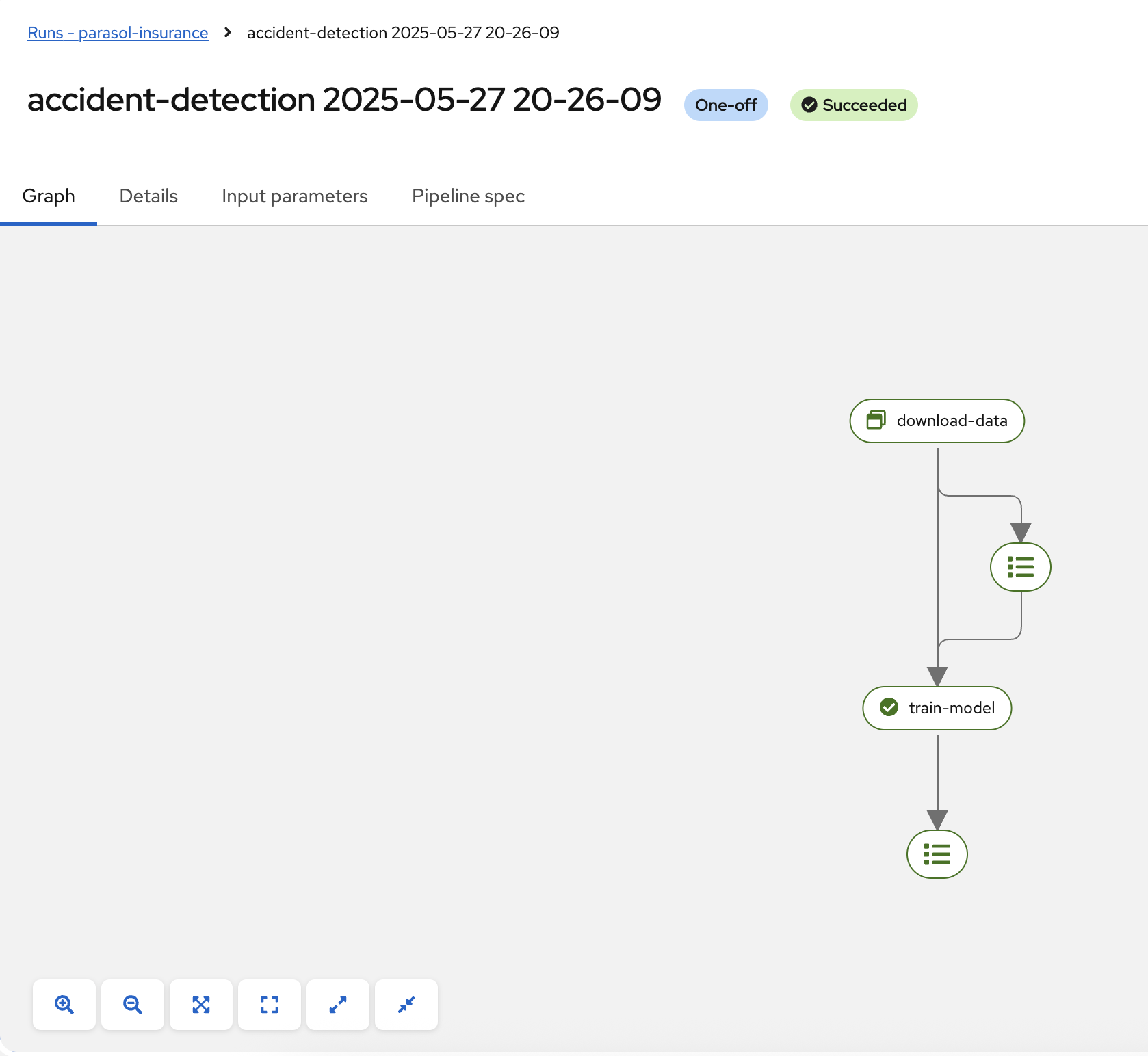

Validate that the pipeline is running, using the RHOAI dashboard, navigate to the Experiments → Experiments and runs: You should find a run with a name starting with accident-detection

Create a cell to upload the model to s3 using the boto3 package, organize this cell to appear before the cell that defines the pipeline (@kfp.dsl.pipeline):

Solution

@dsl.component(
    base_image=PYTHON_IMAGE,
    packages_to_install=["boto3"],
)
def upload_to_s3(model_onnx: dsl.Input[dsl.Model]):
    import os
    import boto3
    from botocore.client import Config

    print("configuring s3 instance")
    # Configuration
    minio_url = "http://minio.object-datastore.svc.cluster.local:9000"
    access_key = "minio"
    secret_key = "minio123"

    # Setting up the MinIO client
    s3 = boto3.client(
        's3',
        endpoint_url=minio_url,
        aws_access_key_id=access_key,
        aws_secret_access_key=secret_key,
        config=Config(signature_version='s3v4'),
    )

    for (dirpath, dirnames, filenames) in os.walk(model_onnx.path):
        for file in filenames:
            print(f"uploading file {dirpath}/{file}")
            s3.upload_file(f"{dirpath}/{file}", "models",
                           f"accident_model/{file}")

Add the upload_to_s3 task to the pipeline.

Solution

@kfp.dsl.pipeline(
    name="Accident Detection",
)
def accident_detection_pipeline(model_obc: str = "accident-detection"):
    download_data_task = download_data(dataset_type="sample")
    train_model_task = train_model(datasets=download_data_task.output)
    upload_to_s3(model_onnx=train_model_task.outputs["model_onnx"])

Save and run your notebook.

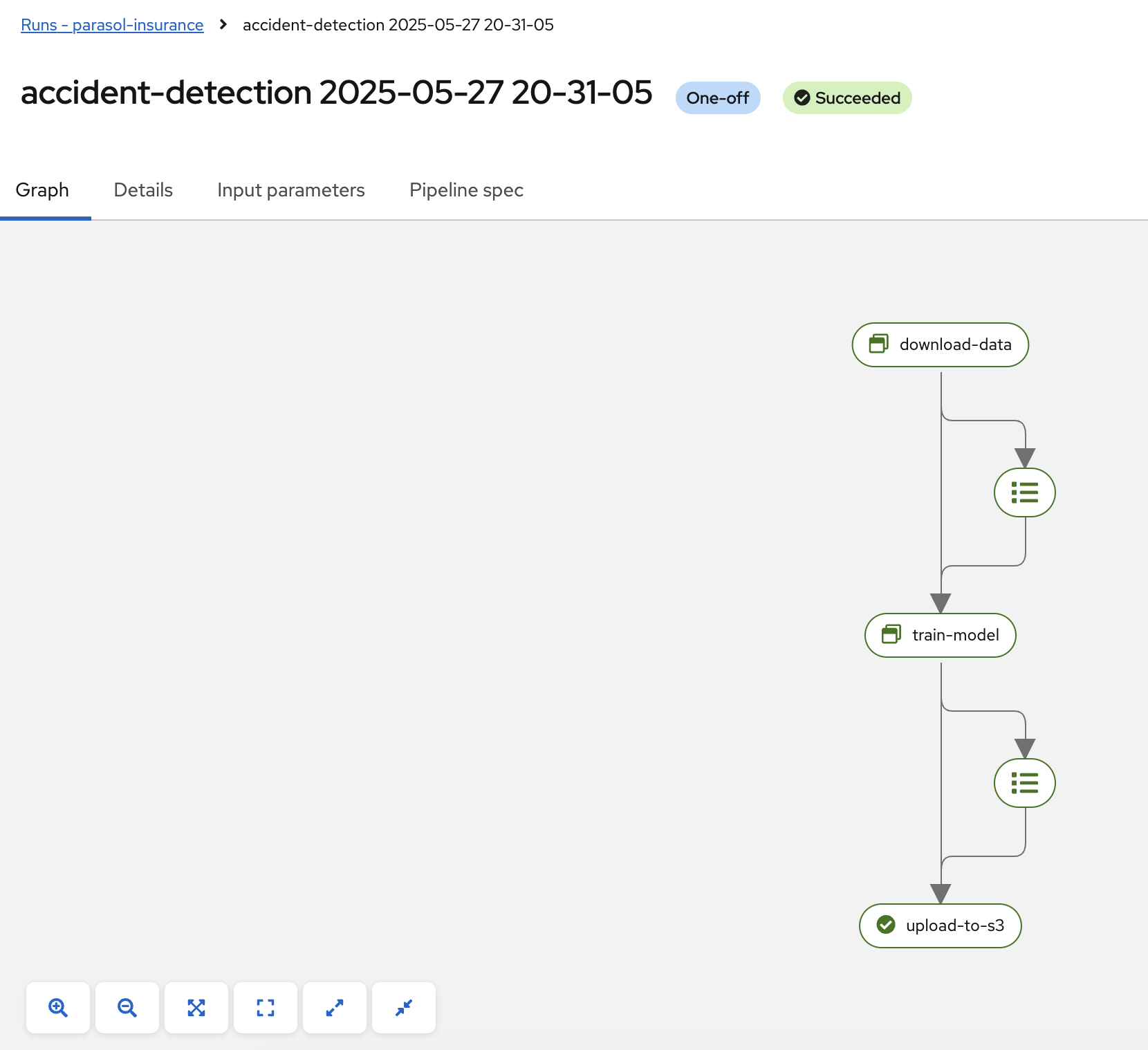

Validate that the pipeline is running, using the RHOAI dashboard, navigate to Experiments → Experiments and runs: You should find a run with a name starting with accident-detection

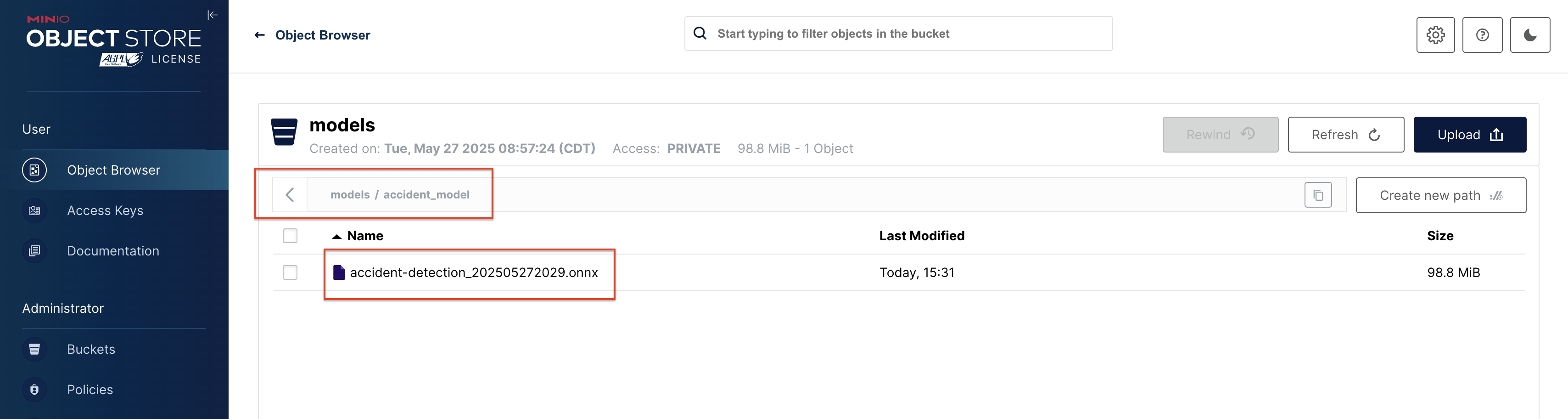

Validate that the model is uploaded to the s3 bucket, by navigating to the s3 bucket in the minio console.
Validate the resulting script: The script should look like this: train-car-rekon.py

Create a pipeline to train a model

Create a model-training-pipeline directory in the parasol-insurance tenants directory.
Create the base and overlays directories in the model-training-pipeline directory.

In the base directory, create a kustomization.yaml file with the following content:

Solution

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

namespace: parasol-insurance

resources:
  - model-retrain-imagestream.yaml
  - model-retrain-pipeline.yaml
  - model-retrain-pipelinerun.yaml
  - execute-kfp-task.yaml

Create file tenants/parasol-insurance/model-training-pipeline/base/model-retrain-imagestream.yaml.
Solution
tenants/parasol-insurance/model-training-pipeline/base/model-retrain-imagestream.yaml
apiVersion: image.openshift.io/v1 kind: ImageStream metadata: name: model-retrain

Create file tenants/parasol-insurance/model-training-pipeline/base/model-retrain-pipeline.yaml.

Solution

tenants/parasol-insurance/model-training-pipeline/base/model-retrain-pipeline.yaml

apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  name: model-retrain
spec:
  params:
    - default: 'https://github.com/redhat-ai-services/ai-accelerator-bootcamp.git'
      description: Repo URL
      name: GIT_URL
      type: string
    - default: 'source_code/40_pipelines'
      description: Repo URL
      name: CONTEXT
      type: string
    - default: 'train-car-rekon.py'
      name: PIPELINE_SCRIPT
      type: string
    - default: main
      name: GIT_REVISION
      type: string
    - default: 3.11-ubi9
      name: PYTHON_IMAGE
      type: string
    - default: 'image-registry.openshift-image-registry.svc:5000/parasol-insurance/model-retrain'
      name: TARGET_IMAGE
      type: string
    - default: 'https://ds-pipeline-dspa.parasol-insurance.svc.cluster.local:8443'
      name: KUBEFLOW_ENDPOINT
      type: string
  tasks:
    - name: git-clone
      params:
        - name: URL
          value: $(params.GIT_URL)
        - name: REVISION
          value: $(params.GIT_REVISION)
      taskRef:
        resolver: cluster
        params:
          - name: kind
            value: task
          - name: name
            value: git-clone
          - name: namespace
            value: openshift-pipelines
      workspaces:
        - name: output
          workspace: source
    - name: s2i-python
      params:
        - name: VERSION
          value: $(params.PYTHON_IMAGE)
        - name: CONTEXT
          value: $(params.CONTEXT)
        - name: IMAGE
          value: $(params.TARGET_IMAGE)
      runAfter:
        - git-clone
      taskRef:
        resolver: cluster
        params:
          - name: kind
            value: task
          - name: name
            value: s2i-python
          - name: namespace
            value: openshift-pipelines
      workspaces:
        - name: source
          workspace: source
    - name: execute-kubeflow-pipeline
      params:
        - name: IMAGE
          value: $(params.TARGET_IMAGE)
        - name: TAG
          value: latest
        - name: SCRIPT
          value: $(params.PIPELINE_SCRIPT)
        - name: KUBEFLOW_ENDPOINT
          value: $(params.KUBEFLOW_ENDPOINT)
      runAfter:
        - s2i-python
      taskRef:
        kind: Task
        name: execute-kubeflow-pipeline
  workspaces:
    - name: source

Create file tenants/parasol-insurance/model-training-pipeline/base/model-retrain-pipelinerun.yaml.

Solution

tenants/parasol-insurance/model-training-pipeline/base/model-retrain-pipelinerun.yaml

apiVersion: tekton.dev/v1
kind: PipelineRun
metadata:
  name: model-retrain-init
  annotations:
    argocd.argoproj.io/sync-wave: "10"
spec:
  pipelineRef:
    name: model-retrain
  taskRunTemplate:
    serviceAccountName: pipeline
  timeouts:
    pipeline: 1h0m0s
  workspaces:
  - name: source
    volumeClaimTemplate:
      spec:
        accessModes:
        - ReadWriteOnce
        resources:
          requests:
            storage: 1Gi
        volumeMode: Filesystem

Create file tenants/parasol-insurance/model-training-pipeline/base/execute-kfp-task.yaml.

Solution

tenants/parasol-insurance/model-training-pipeline/base/execute-kfp-task.yaml

apiVersion: tekton.dev/v1
kind: Task
metadata:
  name: execute-kubeflow-pipeline
spec:
  description: >-
    This task will execute a python script, triggering a kubeflow pipeline
  params:
    - name: IMAGE
      description: The image used to execute the script
      type: string
    - name: TAG
      description: The tag for the image
      type: string
      default: "latest"
    - name: SCRIPT
      description: The name of the script to be executed
    - name: KUBEFLOW_ENDPOINT
      description: The endpoint URL for Kubeflow
      default: "https://ds-pipeline-dspa:8443"
  steps:
    - name: execute-python
      image: $(inputs.params.IMAGE):$(inputs.params.TAG)
      env:
        - name: KUBEFLOW_ENDPOINT
          value: $(inputs.params.KUBEFLOW_ENDPOINT)
      script: |
        python $(inputs.params.SCRIPT)

In the overlays directory, create a parasol-insurance-dev directory.
In the parasol-insurance-dev directory, create a kustomization.yaml file.
Solution
tenants/parasol-insurance/model-training-pipeline/overlays/parasol-insurance-dev/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1 kind: Kustomization resources: - ../../base
Commit and push the changes to the Git repository.
Wait for ArgoCD to sync the changes.
Navigate to the OpenShift console, and validate that the model-retrain pipeline is available in the parasol-insurance namespace.
Click on the model-retrain pipeline, and validate that there is a pipeline run, wait the pipeline run to complete

Navigate to the RHOAI dashboard → Experiments → Experiments and runs: You should find a run with a name starting with accident-detection

Validate your code against Branch for model_retrain pipeline config

The model-retrain-pipeline.yaml refers previously mentioned train-car-recon.py, which uploads model file to S3 and expects that the bucket named models already exists. You can verify this in MinIO web interface and if necessary create missing bucket from there.

Experiments

A pipeline experiment is a workspace where you can try different configurations of your pipelines. You can use experiments to organize your runs into logical groups.

Experiments and Runs

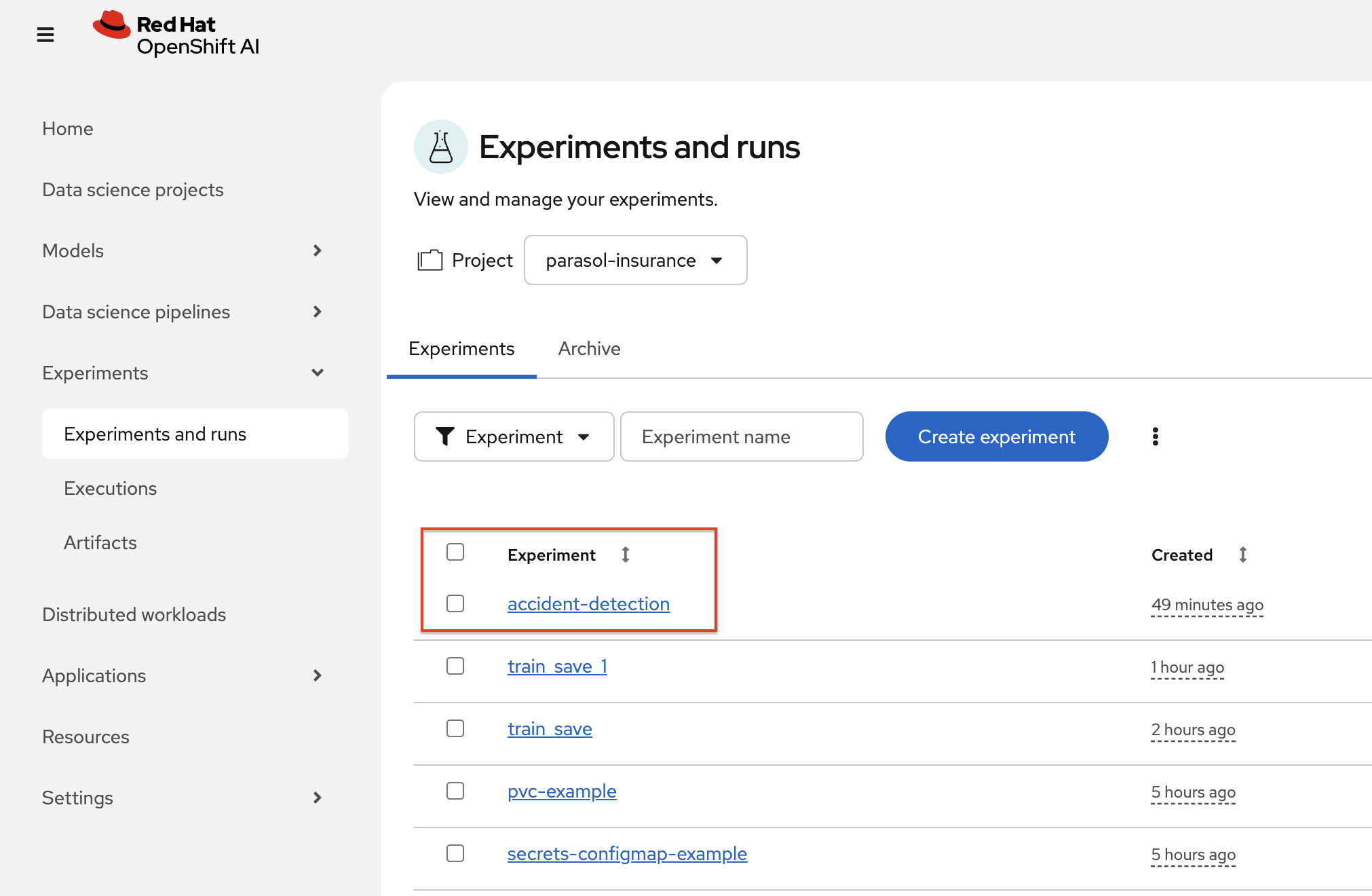

Navigate to RHOAI Dasboard, click on Experiments > Experiments and Runs. Validate that new experiment accident_detection is created

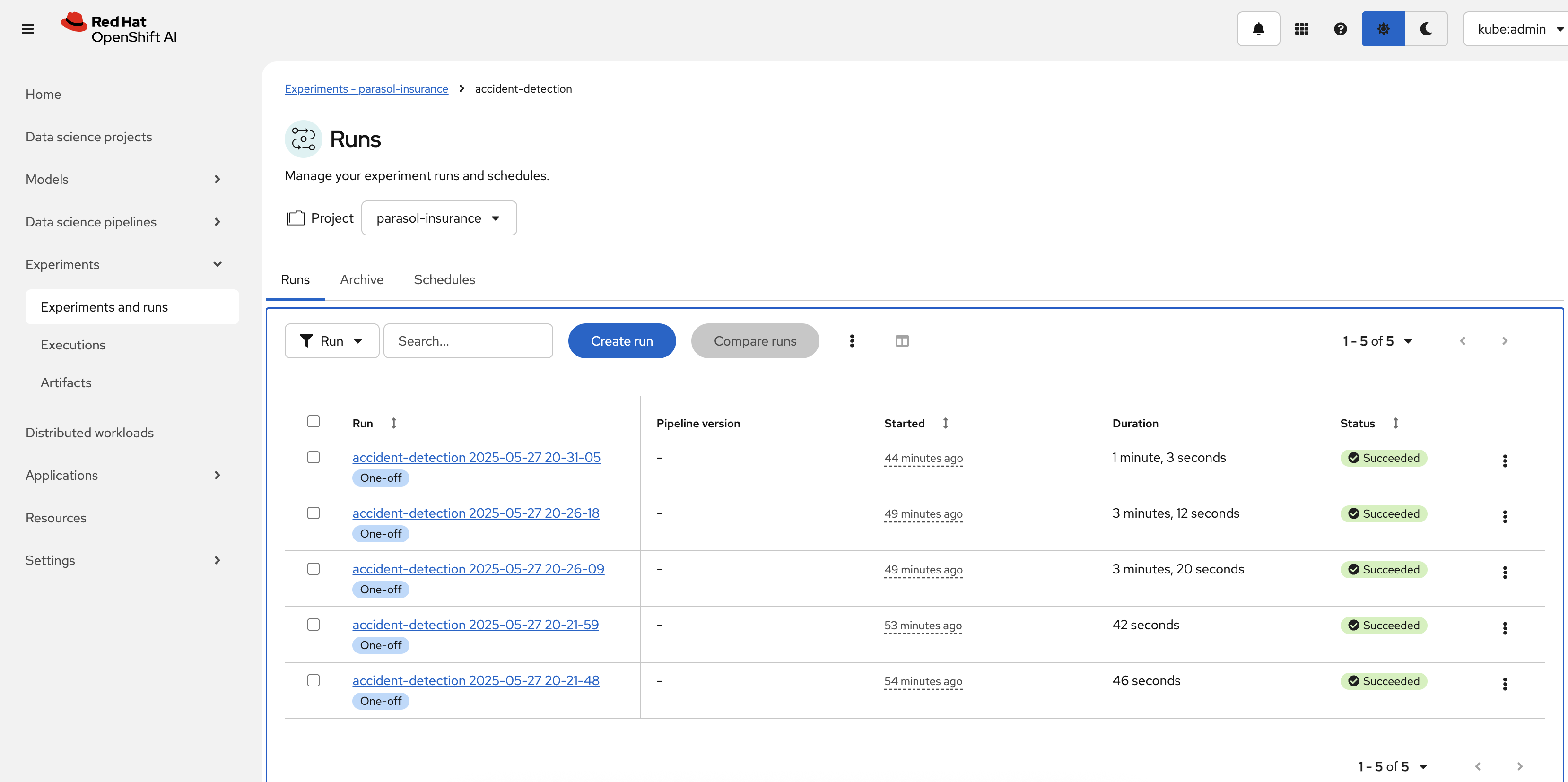

Click on the experiment accident_detection to view pipeline runs.
Click on each pipeline run to view more details.

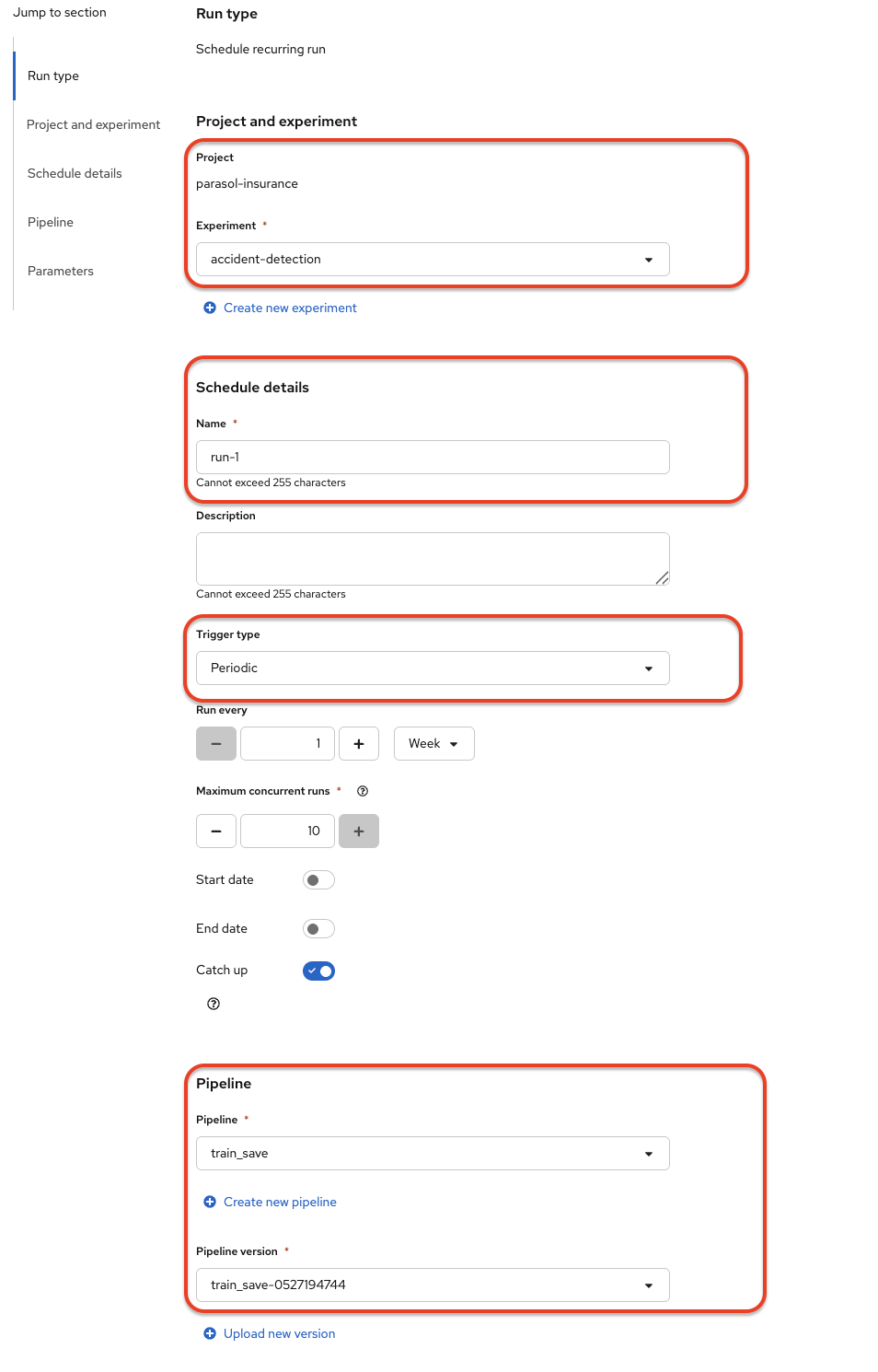

We can schedule periodic pipeline runs for an experiment. Click on 'Schedules'. Click on 'Create Schedule'. Please fill following details:
- Experiment: We can choose an existing Experiment or create a new Experiment.
- Name: Name for the schedule
- Trigger Type: Periodic
- Run Every: 1 hour
- Start Date: Start date for the schedule
- End Date: End Date for the schedule
- Pipeline: Name of the pipeline
- Pipeline version: Version of the pipeline

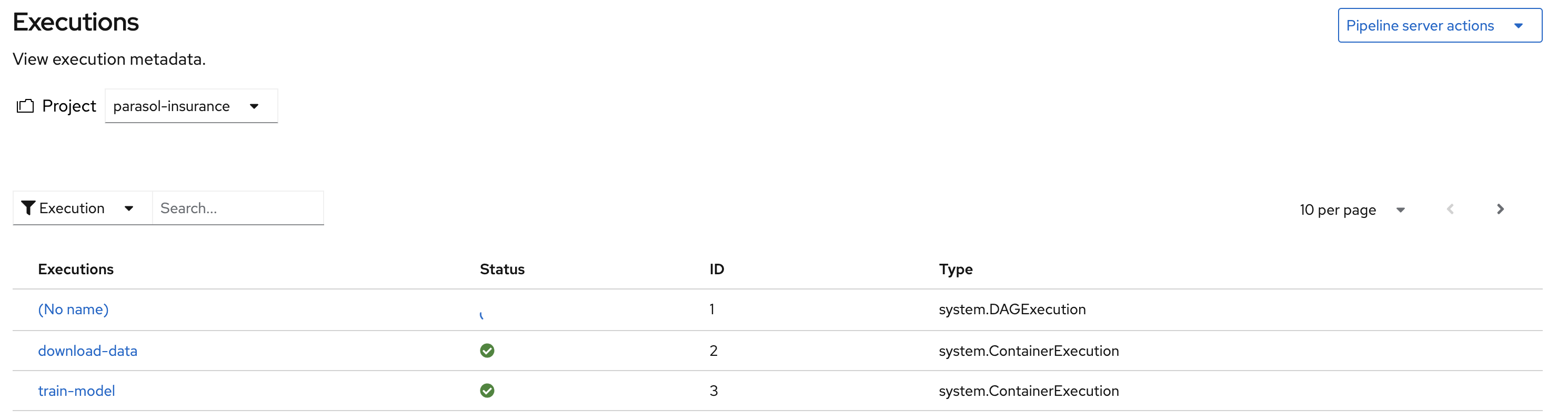

Executions

On Executions page, you can view the execution details of each pipeline task execution, such as its name, status, unique ID, and execution type.

Artifacts

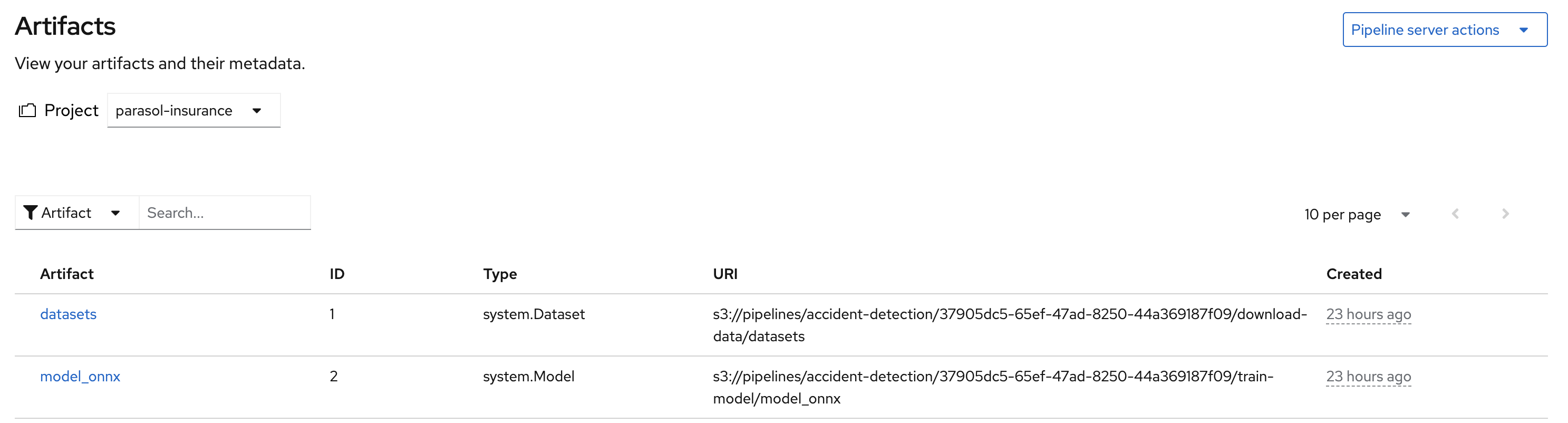

On Artifacts page, you can view the pipeline artifacts. It helps you to evaluate the performance of your pipeline runs.
