MIG (Multi-Instance GPU): First-Time User Guide

What is MIG and Why Should You Care?

The Challenge: GPU Underutilization

Modern GPUs like the NVIDIA A100, H100, and H200 are incredibly powerful, often containing 40GB-180GB of memory and thousands of CUDA cores. However, many workloads don’t fully utilize these resources:

  • A machine learning training job might only use 20% of GPU memory

  • Development and testing workloads often need just a fraction of GPU compute

  • Multiple users need guaranteed GPU access without interference

Before MIG, your options were limited: * Time-sharing: Users take turns, leading to idle resources * Memory oversubscription: Risk of out-of-memory errors * Full GPU allocation: Wasteful for smaller workloads

The Solution: Multi-Instance GPU (MIG)

MIG allows you to partition a single physical GPU into up to 7 smaller, isolated "virtual GPUs" called GPU Instances. Each instance has:

  • Dedicated memory: No sharing or interference between instances

  • Isolated compute resources: Guaranteed streaming multiprocessors (SMs)

  • Hardware-level isolation: Each instance operates independently

  • Quality of Service (QoS): Predictable performance for each workload

Think of MIG as creating apartment units in a building - each tenant gets their own space with guaranteed resources, but they share the building’s infrastructure efficiently.

MIG Overview

Real-World Benefits

For Cloud Service Providers: * Increase GPU utilization from 30-40% to 80-90% * Offer multiple GPU tiers to customers * Provide guaranteed performance isolation

For Enterprises: * Enable multiple teams to share expensive GPU resources * Isolate development/testing from production workloads * Optimize resource allocation across different project requirements

For AI/ML Teams: * Run multiple experiments simultaneously * Provide dedicated resources for different model sizes * Eliminate resource contention between team members

Understanding MIG Architecture

Core Concepts and Terminology

Before diving into implementation, let’s understand the key building blocks:

Streaming Multiprocessor (SM)

The fundamental compute unit of the GPU that executes instructions. Think of SMs as CPU cores for the GPU.

GPU Memory Slice

The smallest unit of GPU memory allocation, roughly 1/8th of total GPU memory including controllers and cache.

GPU SM Slice

The smallest unit of compute allocation, roughly 1/7th of total streaming multiprocessors.

GPU Instance (GI)

A combination of memory slices and SM slices that creates an isolated partition. This is your "virtual GPU."

Compute Instance (CI)

A subdivision within a GPU Instance that can further split compute resources while sharing memory.

How MIG Partitioning Works

Let’s use the A100-40GB as an example to understand partitioning:

Physical A100-40GB GPU:
├── 8 Memory Slices (8 × 5GB = 40GB)
├── 7 SM Slices (98 SMs total)
└── Various engines (NVDECs, encoders, etc.)

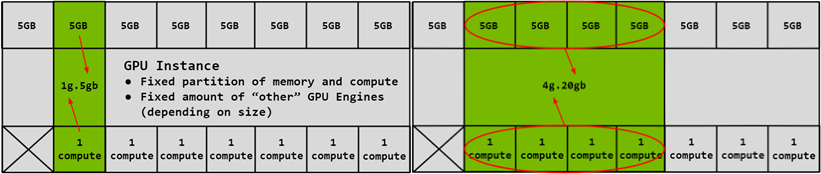

MIG partitioning

Creating GPU Instances

You can combine memory and SM slices to create different GPU Instance profiles:

Profile Name Memory SMs Use Case Max Instances

1g.5gb

1 slice (5GB)

1 slice (14 SMs)

Development, small inference

7

2g.10gb

2 slices (10GB)

2 slices (28 SMs)

Medium models, testing

3

3g.20gb

4 slices (20GB)

3 slices (42 SMs)

Large models, production inference

2

4g.20gb

4 slices (20GB)

4 slices (56 SMs)

Training small models

1

7g.40gb

8 slices (40GB)

7 slices (98 SMs)

Full GPU for large training

1

Hardware Compatibility and Requirements

Supported GPU Products

MIG is available on NVIDIA GPUs starting with the Ampere architecture:

Ampere Architecture

  • A100-SXM4 (40GB/80GB): Up to 7 instances

  • A100-PCIE (40GB/80GB): Up to 7 instances

  • A30 (24GB): Up to 4 instances

Hopper Architecture

  • H100-SXM5 (80GB/94GB): Up to 7 instances

  • H100-PCIE (80GB/94GB): Up to 7 instances

  • H200-SXM5 (141GB): Up to 7 instances

  • H200 NVL (141GB): Up to 7 instances

Blackwell Architecture

  • B200 (180GB): Up to 7 instances

  • RTX PRO 6000 Blackwell (96GB): Up to 4 instances (supports graphics APIs)

Driver and Software Requirements

GPU Family CUDA Version Minimum Driver Version

A100/A30

CUDA 11

R525 (≥ 525.53)

H100/H200

CUDA 12

R450 (≥ 450.80.02)

B200

CUDA 12

R570 (≥ 570.133.20)

RTX PRO 6000 Blackwell

CUDA 12

R575 (≥ 575.51.03)

System Requirements

  • Operating System: Linux distributions supported by CUDA

  • Container Runtime (if using containers):

    • NVIDIA Container Toolkit v2.5.0+

    • Docker/Podman with NVIDIA runtime

  • Orchestration (if using Kubernetes):

    • NVIDIA K8s Device Plugin v0.7.0+

    • NVIDIA GPU Feature Discovery v0.2.0+

Additional Resources

Remember: MIG is a powerful tool for GPU resource optimization. Start with simple configurations and gradually implement more complex setups as you gain experience. Happy computing!
